Type Structure

PowerSystems.jl organizes power system data through a type hierarchy built around the behavior and role of each component in the network. Understanding this hierarchy explains how to retrieve components effectively and how to write code that works across many different component types without modification.

Why a type hierarchy?

Power systems contain a wide variety of physical equipment — generators, loads, buses, transmission lines, transformers, storage devices, and more — each with different data requirements and modeling roles. Rather than treating all components as untyped records, PowerSystems.jl places them into an abstract type hierarchy. This design provides two key benefits:

1. Categorization by behavior: Components that serve the same modeling role share a common abstract supertype. Code can retrieve all components of a given category — all generators, all transmission branches — without enumerating every specific technology type.

2. Generic and extensible model logic: Downstream packages such as PowerSimulations.jl define optimization formulations against abstract types. A new concrete component type slots into existing model formulations automatically, as long as it implements the expected interface. This means users can define technologies not yet in the package and have them work with existing tools.

How components are stored

Each infrastructure component is represented as a struct — a composite data type that bundles together the fields needed to describe that component. For example, an ACBus carries fields for its bus number, nominal voltage, bus type, and more:

mutable struct ACBus
    number::Int64
    name::String
    available::Bool
    bustype::Union{Nothing, ACBusTypes}
    angle::Union{Nothing, Float64}
    magnitude::Union{Nothing, Float64}
    voltage_limits::Union{Nothing, @NamedTuple{min::Float64, max::Float64}}
    base_voltage::Union{Nothing, Float64}
    area::Union{Nothing, Area}
    load_zone::Union{Nothing, LoadZone}
    ext::Dict{String, Any}
    internal::InfrastructureSystems.InfrastructureSystemsInternal
end

Getter and setter functions are generated for every field (e.g., get_name, get_base_voltage). Using these functions rather than direct field access is important: they apply per-unit conversions automatically and provide a stable interface across package versions. See the System explanation for more details on why direct field access is discouraged.

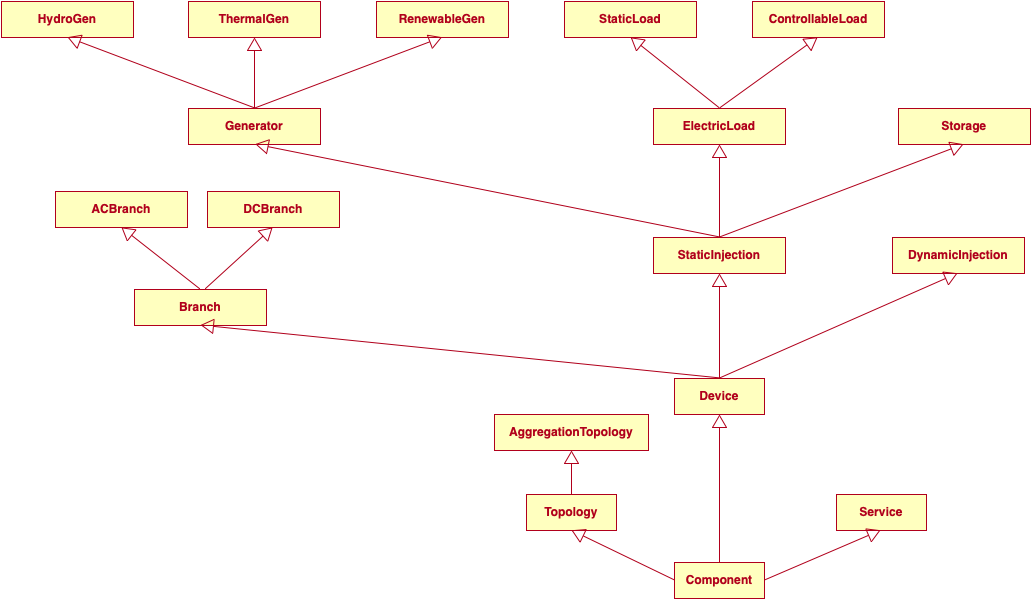

The abstract type hierarchy

For the complete hierarchy, see the Type Tree. The branches below highlight the types most relevant to PowerSystems.jl users:

• System: the top-level data container that holds all Components and their associated time series data. See the System explanation for a full description.

• Component: the abstract supertype for all power system elements:

  • Topology: non-physical elements that describe network connectivity, including ACBus, Arc, Area, and LoadZone. Topology is kept separate from physical devices so that network structure can be defined and manipulated independently of the equipment attached to it.

  • Device: physical equipment installed in the network, including generators, loads, storage, and transmission branches.

  • Service: system-level requirements beyond energy balance, such as operating reserves, AGC, and transmission interface limits. Separating services from devices reflects the fact that a service is a requirement that devices contribute to, rather than a physical component itself.

• InfrastructureSystems.DeviceParameter: structs that carry data describing the dynamic or economic characteristics of a Device, such as cost function curves or dynamic machine parameters. Decoupling these from the device struct itself allows the same physical device to carry different parameter sets depending on the modeling context.

• SupplementalAttribute: contextual data linked to Components, such as location, outage schedules, plant groupings, or emissions, that sits outside each component's electrical definition. Separating attributes from Components reflects the fact that this metadata is often shared across many devices or updated on a different schedule than network equipment data. See Supplemental attributes and Grouping generators into plants.

• TimeSeriesData: the abstract supertype for all time-varying data associated with components:

  • Forecast: time series where multiple values can represent each time stamp, for look-ahead or scenario-based modeling.
  • StaticTimeSeries: time series with a single value per time stamp, for historical or deterministic data.

How the generation hierarchy illustrates the design

Generation is a useful example of how the hierarchy reflects real modeling distinctions. Generators are grouped into three abstract super types based on their dispatch behavior and data requirements:

• ThermalGen: dispatchable units with fuel-based costs and startup/shutdown characteristics.
• RenewableGen: generation driven by a variable resource, with limited or no direct dispatch control.
• HydroGen: hydro units, which share properties of both dispatchable and resource-constrained generation but have unique reservoir and hydrology constraints. See Hydro reservoir topology for linking HydroReservoir components to turbines, and Grouping generators into plants for penstock grouping via HydroPowerPlant.

An optimization formulation written against ThermalGen applies to ThermalStandard, ThermalMultiStart, and any user-defined thermal subtype without modification. This is the intended extension mechanism: new technologies are introduced by defining a concrete type under the appropriate abstract supertype.

What this means for developers

The PowerSystems.jl type hierarchy deliberately provides abstractions without encoding a specific mathematical model for any component. The struct for a ThermalStandard generator holds the data describing that unit; it does not prescribe how the unit should be represented in a particular simulation. The mathematical formulation is entirely the responsibility of the downstream tool.

This separation allows the same data model to simultaneously support power flow analysis, production cost modeling, and transient stability simulation through different downstream packages, without any modification to the underlying data.

For a hands-on introduction to navigating the type hierarchy, see the Create and Explore a Power System tutorial.
